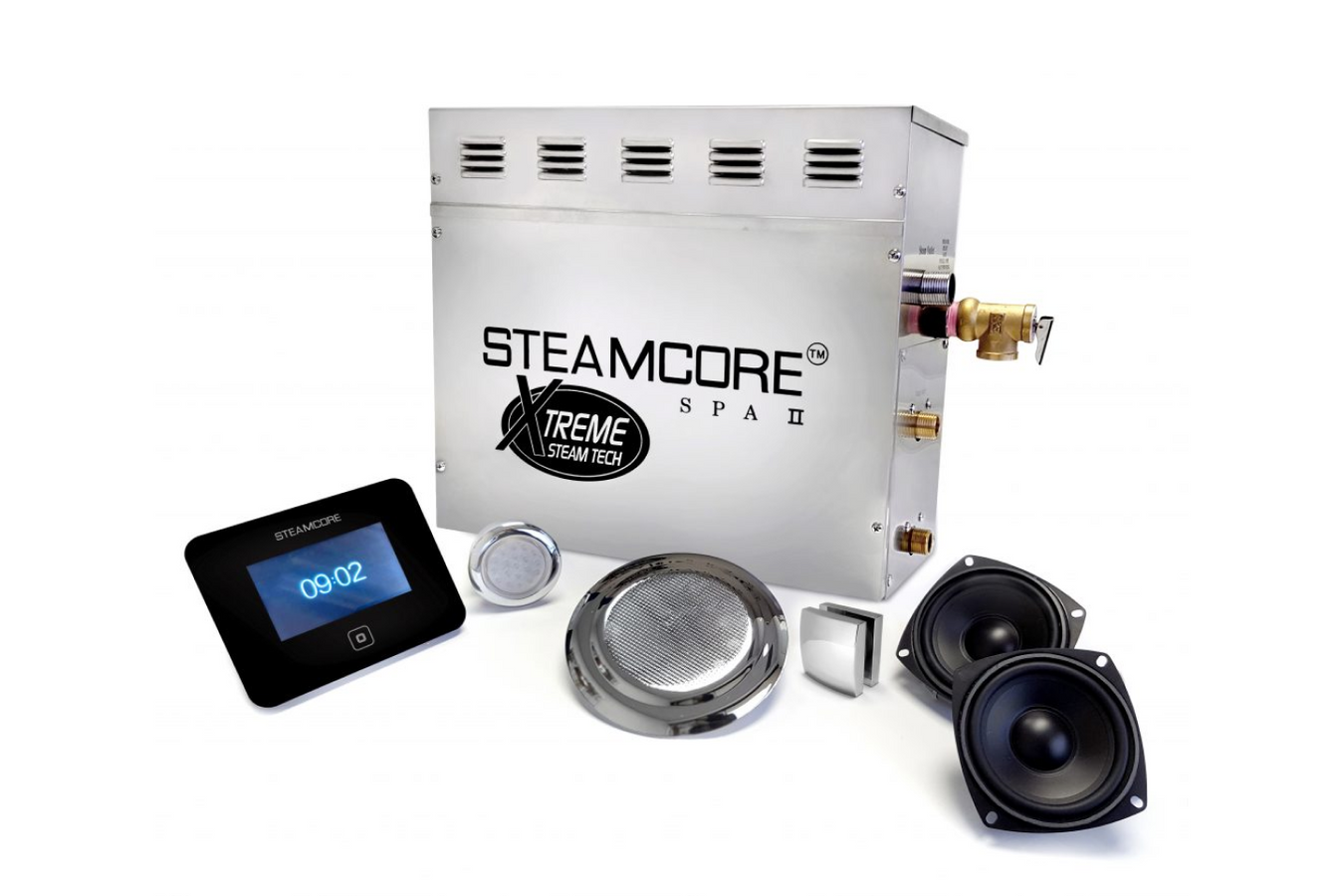

Steamcore Spa II Steam Shower Generator

Steamcore Spa II Steam Showers

• Description

• Features

• Manual


• Staying true to their tradition of excellence and innovation, Saunacore offers yet another revolutionary product, Steamcore. This product is set to redefine your steam bath experience. Using cutting-edge engineering and technology, Steamcore is created with precision and highest quality. Determined to deliver only the best steam bathing experience, each minute detail of Steamcore is scrutinized and examined to perfection.

  Choose your steam shower generator based on the simple sizing chart below!


  Model	Cubic Feet	Voltage	Amperage
  6kw	up-to 175 cu.ft	240v/1ph	30a
  7.5kw	up-to 275 cu.ft	240v/1ph	31.25
  9kw	up-to 375 cu.ft	240v/1ph	37.5a
  10.5kw	up-to 450 cu.ft	240v/1ph	43.75a
  12kw	up-to 525 cu.ft	240v/1ph	50a
  13.5kw	up-to 625 cu.ft	208v/3ph	37.5 x3a
  15kw	up-to 685 cu.ft	208v/3ph	41.7 x3a
  18kw	up-to 900 cu.ft	208v/3ph	50 x3a




•  • Stainless steel boiler tank with industrial stainless heating elements.
   • Factory installed automatic flush.
   • Spa II steam heads with aroma oil reservoir.
   • Steam room temperature sensor.
   • Stainless steel exterior body with serviceable heating elements.
   • Super quiet operation and fresh water after every use.
   • 3 Level water sensing operation of boiler tank.
   • State-of-the-art electronic steamer operations circuit board.
   • Limited life-time warranty.
   • Compact design and minimal water usage for steam.
   • Asme pressure release valve with brass intake and drain valves.
   • 22 Ft. Shielded control cable.
   • Xtreme Quick and continuous steam.
   • Brushed/polished nickel optional upgrade.


• Steamcore Spa II Manual (PDF)
